Description |
18.5” TFT LCD, 500 nits LED Backlight, 1920x1080 |
Screen Size |
18.5” |
Display Area (mm) |
408.960(H) x 230.040(V) |
Brightness |
500 cd/m2 |
Resolution |
1920x1080 |
Aspect Ratio |
16: 9 |
Contrast Ratio |
1100: 1 |
Pixel Pitch (mm) |
0.213(H) x 0.213(V) |
Pixel Per Inch (PPI) |
119 |
Viewing Angle |
178°(H),178°(V) |
Color Saturation (NTSC) |
84% |
Display Colors |
|
Response |
20ms |
Panel Interface |
LVDS |

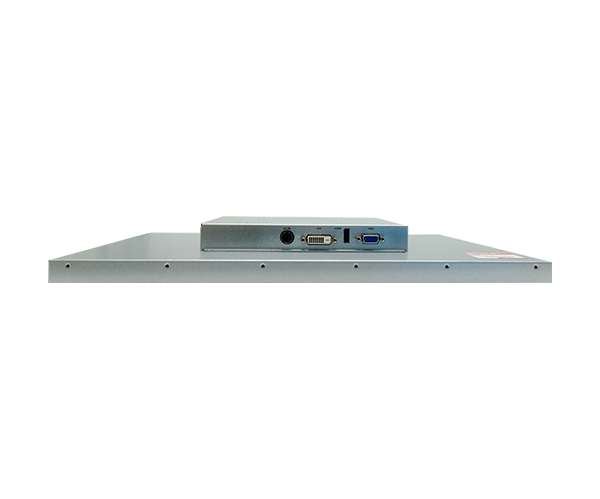

Input Interface |
VGA, DVI-D, HDMI |
Input Power |
DC12V |
Power Consumption |
21.2W |
OSD Key |
4 Keys (Power Switch, Menu, +, -) |
OSD Control |
Brightness, Color, Contrast, Auto Turing, H/V Position…etc |
Dimensions (mm) |
433 x 257.2 x 47.1 mm |
Bezel Size(U/B/L/R) |
13.6/13.6/12/12 mm |
Mounting |
75 x 75 mm , 100 x 100 mm |
Weight (Net) |
2.5Kg |
Operating Temperature |
-20 ˚C ~ 70 ˚C |
Storage Temperature |
-20 ˚C ~ 70 ˚C |
