EUD0703-TIB-Q11

EUD0703

Availability:5

US$257.00

US$321.00

- +
  • 7" sunlight readable, high brightness (600 nits)
  • Resolutions: 1280 x 800
  • Industry leading LED backlight
  • Aspect ratio of 16:10
  • Wide temperature (-20°C~70°C)
  • Low power consumption
  • BL MTBF: 100,000 hours
Description 7" TFT LCD, 1600 nits LED backlight, 1280x800
size 7"
Display area (mm) 149.76(H) x 93.6(V)
Brightness 600 cd/m²
Resolution 1280x800
Aspect ratio 16:10
Contrast ratio 800:1
Pixel pitch (mm) 0.117 (H) x 0.117 (V)
Pixel per inch (PPI) 215
Viewing angle 176° (H), 176° (V)
Color saturation (NTSC) 55%
Display colors 16.7M
Response time (Typical) 35ms

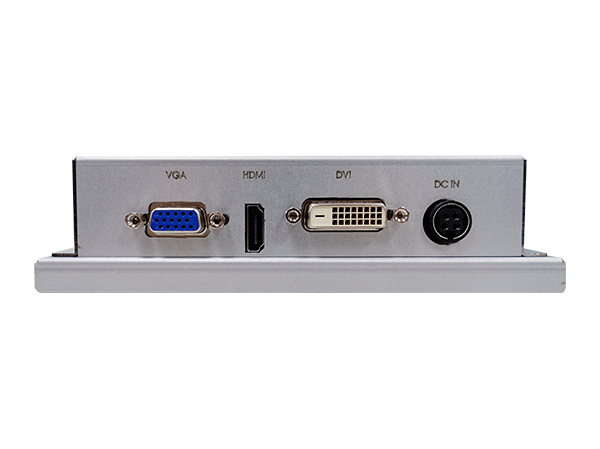

Video interface LVDS VGA, DVI-D, HDMI
Input power   DC 12V
Power consumption 5.6W 8.9W
Dimensions (mm) 161x107x6.2 161x107x6.2
Bezel size (U/B/L/R) 2.7/8.7/2.87/6.37 2.7/8.7/2.87/6.37
Weight (Net) 0.13kg 0.29kg
OSD key   4 keys (Power switch, menu, +, -)
OSD control   Brightness, color, contrast, H/V position… etc
Operating temperature -20°C ~ +70°C
Storage temperature -30°C ~ +80°C
