- 19" sunlight readable, high brightness (1,600 nits) LCD
- Advanced Optical Bonding (AOT)
- High shock & vibration resistance
- Picture-in-Picture function
- Projected capacitive multi-touch support
- IP65 waterproof (front)
- 9-36V DC input
- BV Rule IACES‐E10 certified; IEC 60945 compliant
|
Description |

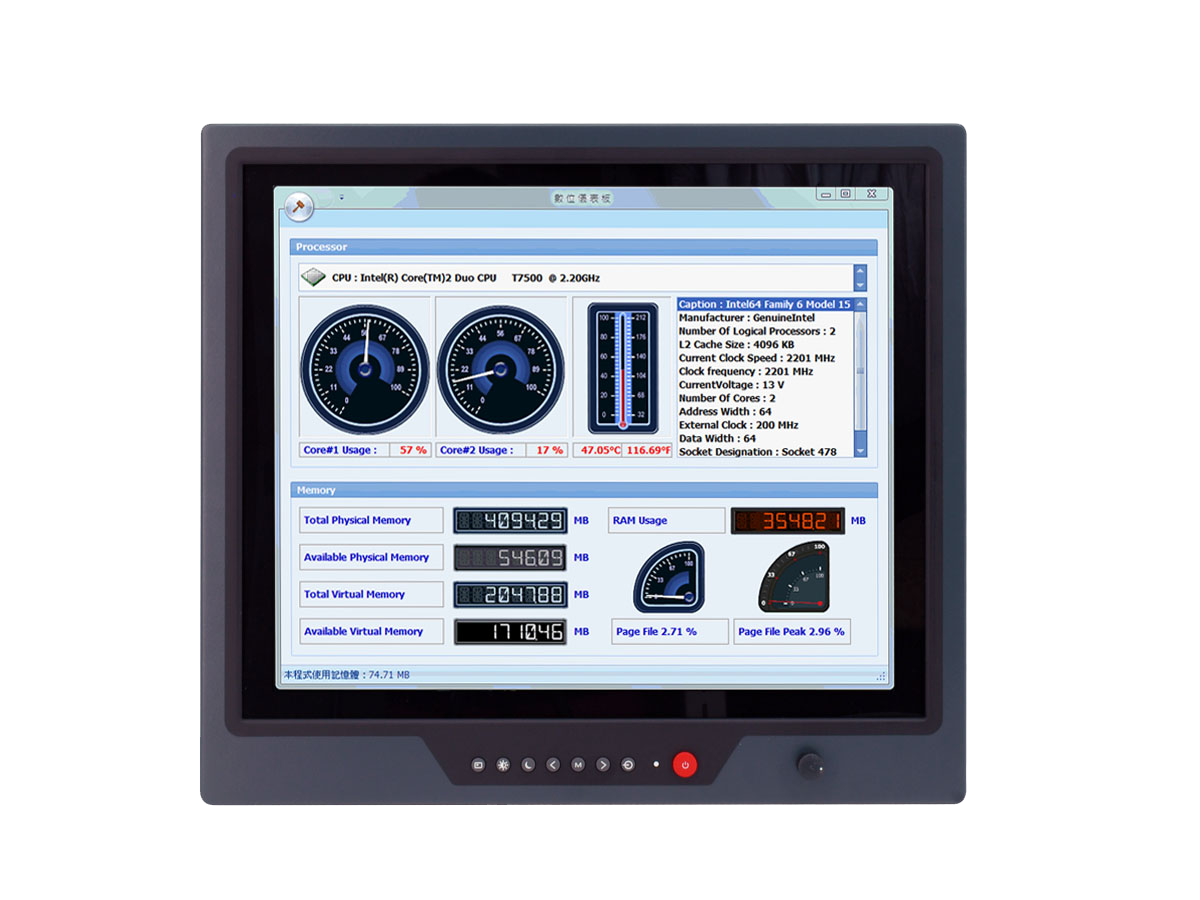

19" IP65 Sunlight Readable PCT Multi-Touch Marine Display |
|
Screen Size |
19” |
|
Display Area (mm) |
376.3(H) x301.1(V) |
|
Brightness |
1600 cd/m² |
|
Resolution |
1280x1024 |
|
Aspect Ratio |
5:4 |
|
Contrast Ratio |
1000 : 1 |
|
Pixel Pitch (mm) |
0.3105(H) x 0.3105(V) |
|
Pixel per inch (PPI) |
86 |
|
Viewing angle |
170° (H), 160° (V) |
|
Display colors |
16.7M |
|
Response time (Typical) |
5ms |
|

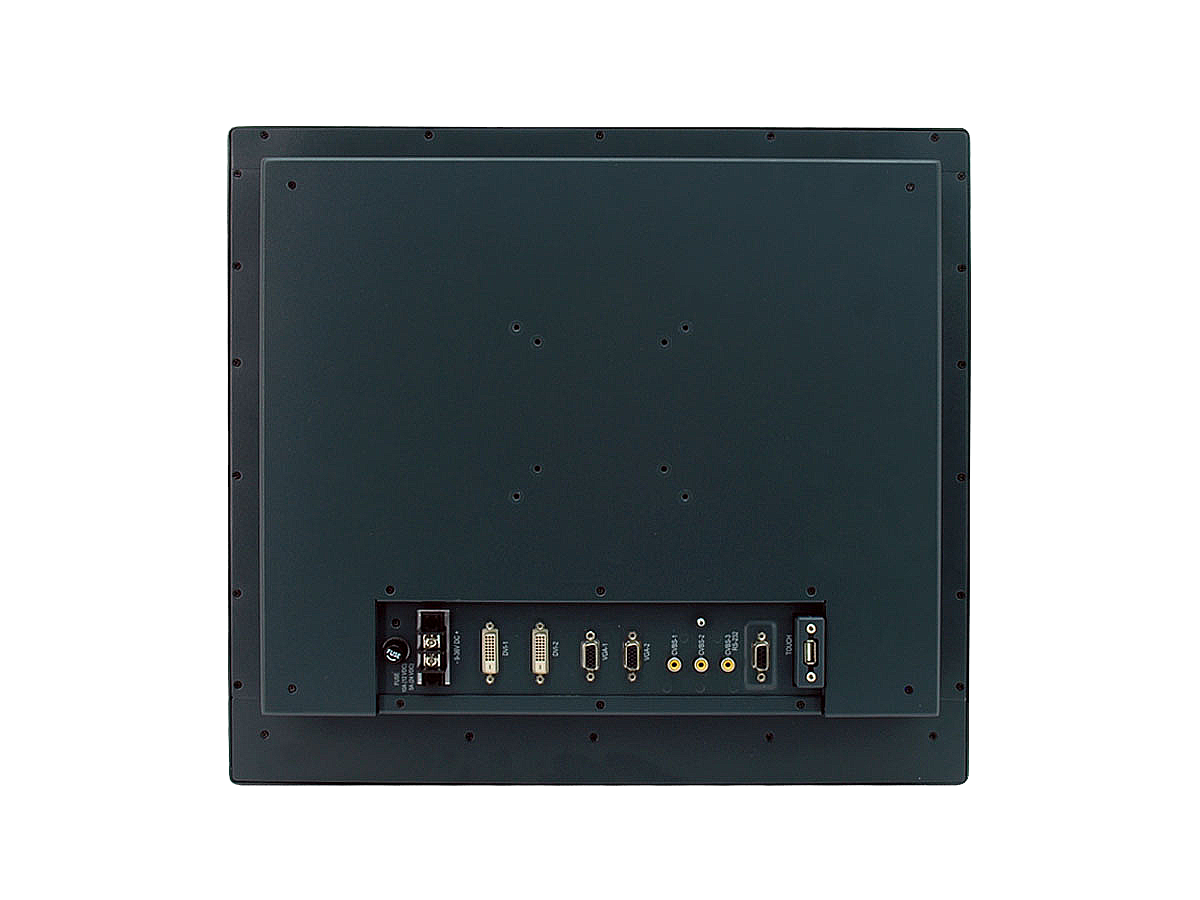

Video interface |
VGAx2, DVIx2, Compositex3, RS232x1, USBx1 |
|
Input power |
DC input 9~36V |
|
Power consumption |
42w |
|
Dimensions (mm) |
463(W)x411.1(H)x56.9(D) |
|
Weight (Net) |
5.5kg |
|
Mounting |
Panel (Flush) mount, VESA mount |
|
Operating temperature |
-10˚C~50˚C (-14℉~122℉) |
|
Storage temperature |
-20˚C~70˚C (-4℉~158℉) |
|
Product approval |
CE/FCC |
|
Picture in picture |
3 stages (Child, split and wide screen) |
|
IP rating |
IP65 waterproof (facial) with console mounted |
|
Construction |
Rugged aluminum alloy chassis |
|
Optional |
□Glass □Resistive Touch □PCT Touch |
