- High Brightness 500nits
- Aspect ratio 1:1
- Quad-core ARM Cortex-A55 CPU and Mali-G52 GPU
- 2GB RAM, 16GB eMMc flash
- BL MTBF: 50,000 hours
|
Description |

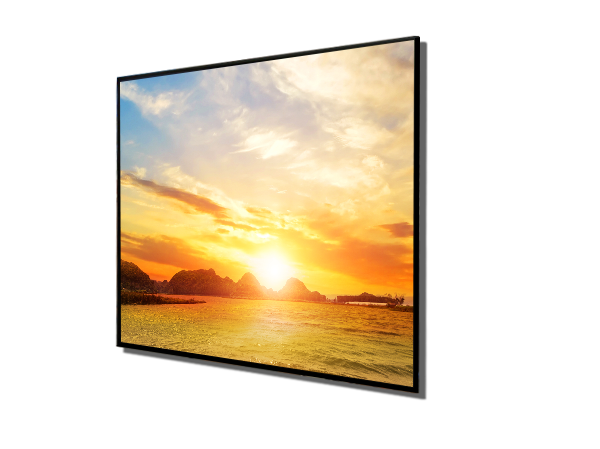

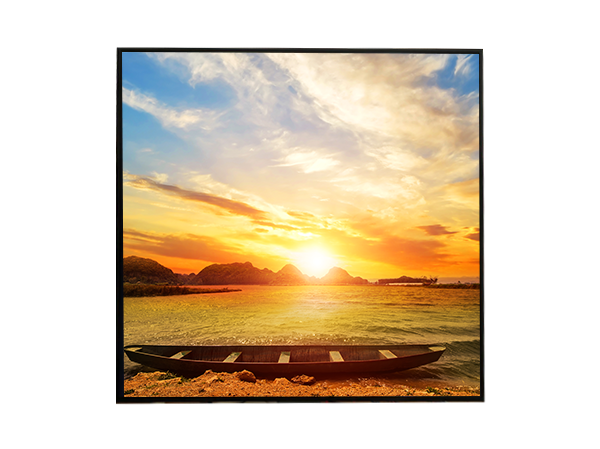

33.2” TFT LCD, 500nits LED Backlight, 1920x1920 |
|
Screen Size |
33.2” |
|
Display Area (mm) |
596.16(H) x 596.16(V) |
|
Brightness |
500 cd/m2 |
|
Resolution |
1920x1920 |
|
Aspect Ratio |
1 : 1 |
|
Contrast Ratio |
1000 : 1 |
|
Pixel Pitch (mm) |
0.3105(H) x 0.3105(V) |
|
Viewing Angle |
178°(H),178°(V) |
|
CPU |
Rockchip RK3568 Quad-core ARM Cortex-A55 CPU |
|
OS |
Android 11.0 |
|
RAM |
2GB LPDDR4 |
|
Storage |
16GB eMMC |
|
I/O |
DP in x1, USB2.0(type A)x2 ，USB2.0(type C)x1 |
|
Audio |
3.5 Audio Jack |
|
Camera |
Optional (For customized) |
|
Microphone |
1 |
|
Wifi |
IEEE802.11a/b/g/n/ac(2.4G+5.8G) |
|
SD Card |
Built in 128GB |
|
Input Power |
AC 100~240V |
|
Power Consumption |
75W |
|
Dimensions (mm) |
615.8 x 615.8 x 54.5 |
|
Weight (Net) |
13.5 kg |
|
Mounting |
400x200, 400x300 |
|
Operating Temperature |
0 ˚C ~ 50 ˚C |
|
Storage Temperature |
-20 ˚C ~ 60 ˚C |
