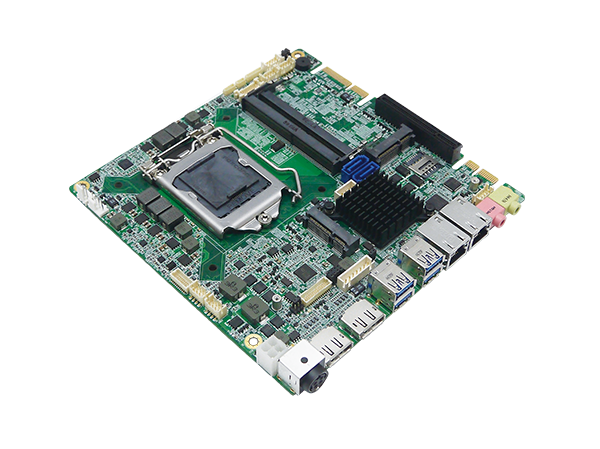

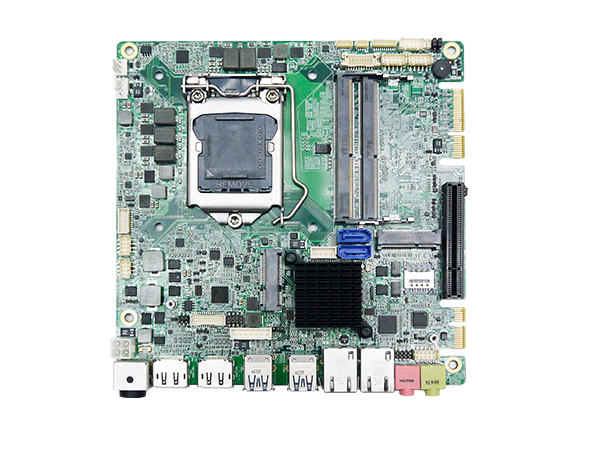

EMIX-KBL5-H110-S000-0000

Mini-ITX Embedded Boards

Availability:9

US$273.00

- +
  • LGA1151 Intel® 6th/7th Gen Core™ i7/i5/i3/ Celeron® processors
  • Intel® Q170/H110 chipset
  • Two 260-pin SO-DIMM up to 32GB DDR4 2133MHz SDRAM
  • Muti-Display: HDMI/DP/iDP/LVDS(eDP)
  • Two Intel® Gigabit Ethernet ports
  • 1 PCIe (x8), 2 Mini-PCIe (1 combo mSATA, 1 w/ micro-SIM) expansion slots
  • 2 SATA III, 2 COM, 4 USB 3.0 and 4 USB 2.0
  • EuP/ErP 2013 Ready
  • Support Intel® AMT v11.0 (w/ Q170) and TPM v1.2/v2.0 (optional)
  • Model Name AMIX-KBL5
    Form Factor Mini-ITX
    Dimensions (L)x(W)mm 170mm x 170mm (6.69" x 6.69")
    Processor Intel® 7th Gen Core™ i7/i5/i3/Celeron® processors (LGA1151)
    Chipset Intel® Q170/H110 PCH
    BIOS AMI SPI Flash ROM
    LAN Controller LAN 1: Intel® I219LM GbE with iAMT 11.0 (only Q170 w/ i7/i5 supports)
    LAN 2: Intel ®I210 GbE
    Audio Codec Realtek ALC662 HD
    Watchdog Timer Yes
    Memory
    Technology DDR4 2133MHz SDRAM
    Max. Capacity Up to 32GB
    Socket 2 x 260 Pin SO-DIMM
    Display
    Graphic Intel® HD Gen. 9 Graphics
    Display Interface HDMI, 2 x DP, eDP or LVDS (Dual channel 18/24-bit) optional

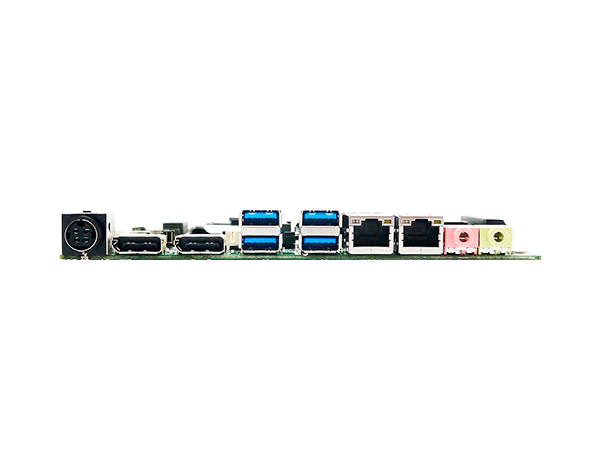

    I/O
    Expansion Slot 1 x PCIe x8
    1 x PCIe x1 & 1 x PCIe x4 (extension bus for PCIe signal)
    2 x Mini-PCIe (1 x Full-size w/ mSATA, 1 x Full-size w/ SIM card
    LAN 2 x 10/100/1000 Mbps
    Serial ATA 2 x SATAIII
    Audio Line-out, Mic-in
    USB 4 x USB 3.0, 4 x USB 2.0
    COM 1 x RS-232, 1 x RS-232/422/485
    Display 2 x DP (co-layout HDMI), 1 x iDP interface (co-layout HDMI), 1 x LVDS
    Digital I/O 1 x 16-bit programmable GPIO
    SMB 1 x SMBus
    PS/2 1
    Power Requirement
    Power connector 1 x ATX (2x2-pin), 1 x DC-Jack 4-pin
    Power Type DC-in 12V
    Power Mode AT/ATX (by jumper selection)
    Environment
    Opearting Temperature 0°C ~ 60°C (32°F ~ 140°F) standard
    -20°C ~ 70°C ( -4°F ~ 158°F) optional
    -40°C ~ 70°C (-40°F ~ 158°F) optional
    Storage Temperature -20°C ~ 80°C (-4°F ~ 176°F)
    Relative Humidity 0% ~ 95% (non-condensing)
