Description |
8.4" TFT LCD, 1600 nits LED backlight, 800x600 |
size |
8.4" |
Display area (mm) |
170.4(H) x 127.8(V) |
Brightness |
600 cd/m² |
Resolution |
1024x768 |
Aspect ratio |
4:3 |
Contrast ratio |
600:1 |
Pixel pitch (mm) |
0.213 (H) x 0.213 (V) |
Pixel per inch (PPI) |
119 |
Viewing angle |
160° (H), 140° (V) |
Color saturation (NTSC) |
60% |
Display colors |
16.2M |
Response time (Typical) |
35ms |

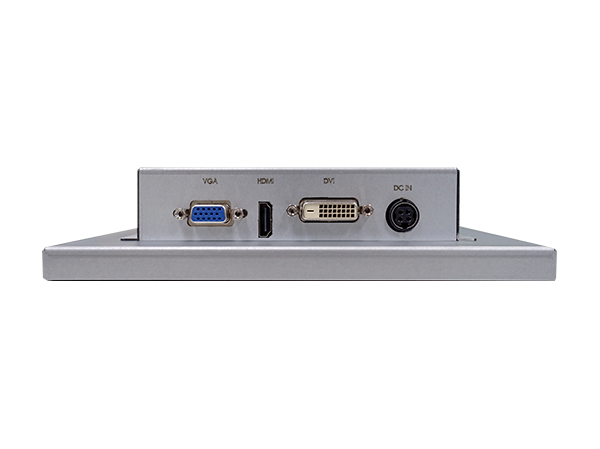

Video interface |
LVDS |
VGA, DVI-D |
Input power |
|
DC 12V |
Power consumption |
6.8W |
10W |
Dimensions (mm) |
203x142.5x6.1 |
227x153.2x43.5 |
Bezel size (U/B/L/R) |
6.25/5.05/18.33/10.87 |
11.9/11.9/27.5/27.5 |
Weight (Net) |
0.2 kg |
1.25 kg |

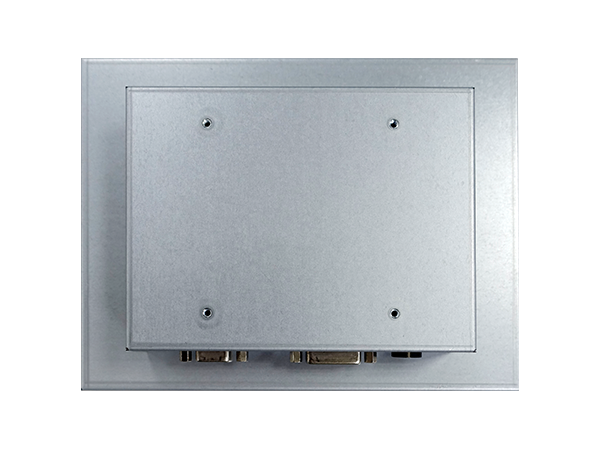

Mounting |
|
VESA 75x75 |

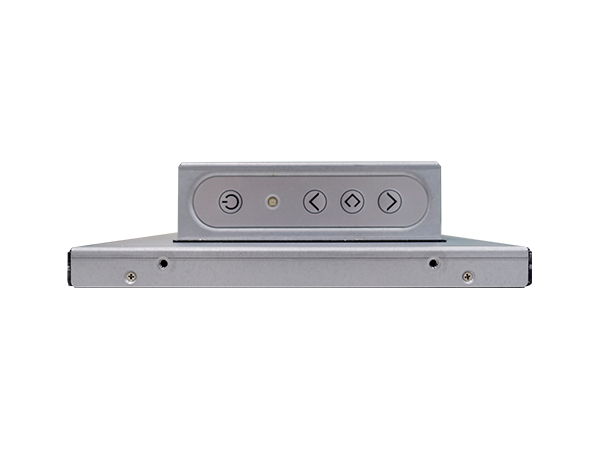

OSD key |
|
4 keys (Power switch, menu, +, -) |
OSD control |
|
Brightness, Color, Contrast, Auto Turing, H/V Position…etc |
Operating temperature |
-20°C ~ +70°C |
Storage temperature |
-20°C ~ +70°C |
Product approval |
|
CE, FCC |
