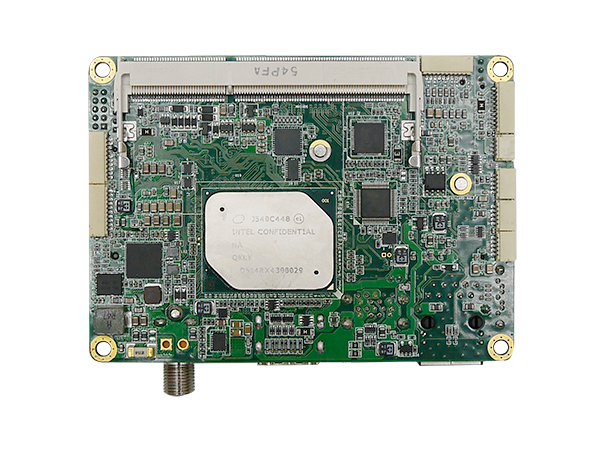

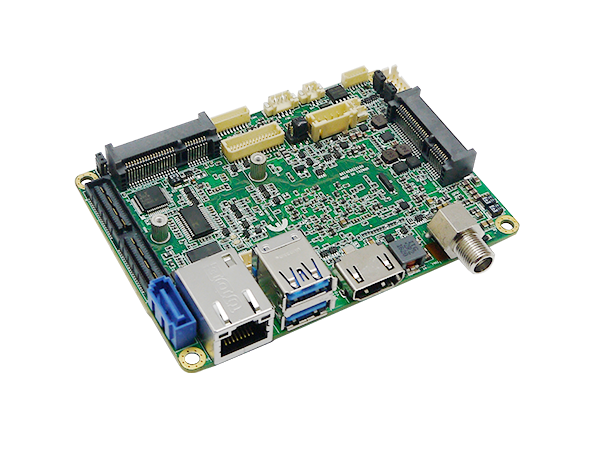

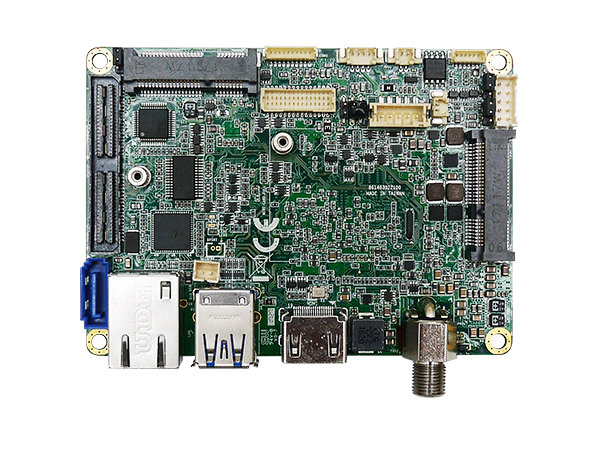

2.5" Pico-ITX Boards



- +
  • Intel® Atom®/Pentium®/Celeron® processor (Apollo Lake)
  • One 204-pin SO-DIMM DDR3L up to 8G DDR3L 1866MT/s SDRAM
  • Multi-Display: HDMI/LVDS/AMIO(DP v1.2 interface, optional)
  • One Intel® Gigabit Ethernet ports
  • 2 Mini-PCIe (1 Full size combo mSATA, 1 Half size), 1 AMIO expansion slots
  • 1 SATA III , 2 COM, 2 USB 3.0 and 3 USB 2.0
  • Supports 4K/2K Resolution Display
  • DC-in 12V, EuP/ErP 2013 Ready
Model Name APIX-APL2
Form Factor 2.5" PICO-ITX
Dimensions (L)x(W)mm 100mm x 72mm (3.94" x 2.84")
Processor Intel® ATOM™ x7-E3950 1.6GHz (12W)
Intel® ATOM™ x5-E3940 1.6GHz (9.5W)
Intel® ATOM™ x5-E3930 1.3GHz (6.5W)
Intel® Pentium® N4200 QC 1.1GHz (6W)
Intel® Celeron® N3350 DC1.1GHz (6W)
Chipset Intel® Apollo Lake-I SoC Integrated
LAN Controller Intel® I211 GbE
Audio Codec Realtek ALC662 HD
Watchdog Timer Yes
Technology DDR3L up to 1866MHz SDRAM
Max. Capacity Up to 8GB
Socket 1 x 204-pin SO-DIMM
Graphic Intel® Gen. 9-LP graphics
Display Interface HDMI, DP, LVDS (Dual channel 18/24-bit)
Expansion Slot 2 x Mini-PCIe (1 x Full-size w/ mSATA, 1 x Half-size)
LAN 1 x 10/100/1000 Mbps
Serial ATA 1 x SATAIII
Audio Line-in, Line-out, Mic-in

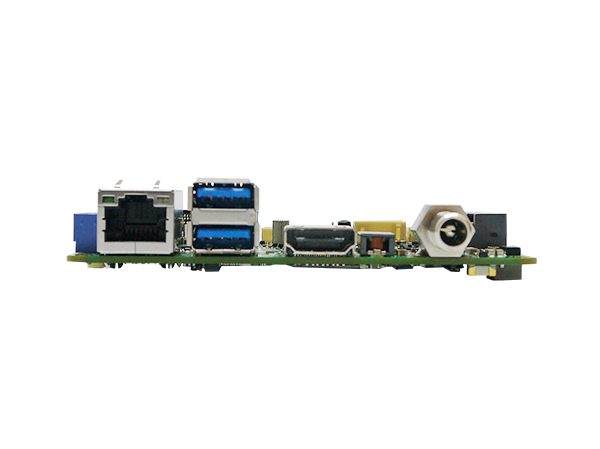

USB 2 x USB 3.0, 3 x USB 2.0
COM 1 x RS-232, 1 x RS-232/422/485
Display 1 x HDMI, 1 xDP(AMIO optional), 1 x LVDS
Digital I/O 1 x 8-bit
SMB 1 x SMBus
PS/2 N/A
Power Requirement
Power connector 1 x DC-wafer 1x2-pin or DC-Jack screw type (optional)
Power Type DC-in 12V
Power Mode AT/ATX (by jumper selection)
Opearting Temperature 0°C ~ 60°C (32°F ~ 140°F) standard
-20°C ~ 70°C (-4°F ~ 158°F) optional
-40°C ~ 70°C (-40°F ~ 158°F) optional
Storage Temperature -40°C ~ 80°C (-4°F ~ 176°F)
Relative Humidity 0% ~ 95% (non-condensing)
